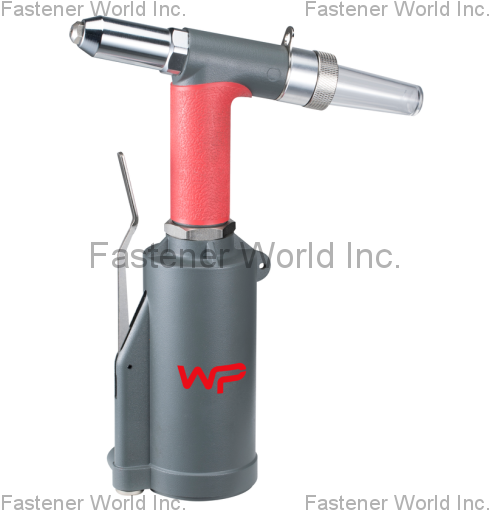

3/16” Air hydraulic riveter
WIN POWMAX CORP. (WELIH TOOLS CO., LTD.)
About Company
WIN POWMAX CORP. (WELIH TOOLS CO., LTD.)
TAIWAN
3FL., No. 48, Szu Ping St., Taipei 104, Taiwan
886-2-2732 2902 , 886-4-2495 0798
886-2-5559 3339 , 886-4-2495 0768
Please login
Model / Specification
3/16” Air hydraulic riveter
Country of Origin
TAIWAN
Surface Treatment
3/16” Air hydraulic riveter
Material
3/16” Air hydraulic riveter
Alias
3/16” Air hydraulic riveter
Pneumatic/hydraulic Riveters
Patent
3/16” Air hydraulic riveter
Head Marking
Capacity
3/16” Air hydraulic riveter
Minimum Order Quantity
3/16” Air hydraulic riveter
Detailed Description
‧Rivet Capacity: for setting blind rivets up to 3/16” (4.8mm)
‧Nosepieces: 2.4mm, 3.2mm, 4.0mm, 4.8mm
‧Max Capacity: up to 4.8mm in al. & steel; up to 4mm in stainless
‧Traction Power: 2508lbs (1140kgs)
‧Tool Stroke: 16mm
‧Working pressure: 60~100PSI (depend on rivet material)
‧Air inlet: 1/4”PT
‧Weight: 3.2lbs (1.45kgs)
‧Nosepieces: 2.4mm, 3.2mm, 4.0mm, 4.8mm
‧Max Capacity: up to 4.8mm in al. & steel; up to 4mm in stainless
‧Traction Power: 2508lbs (1140kgs)
‧Tool Stroke: 16mm
‧Working pressure: 60~100PSI (depend on rivet material)
‧Air inlet: 1/4”PT
‧Weight: 3.2lbs (1.45kgs)
