Japan SANKO TECHNO Released DGA Series Anchor Drive Bar and GT-2530 Inner Cone Anchor

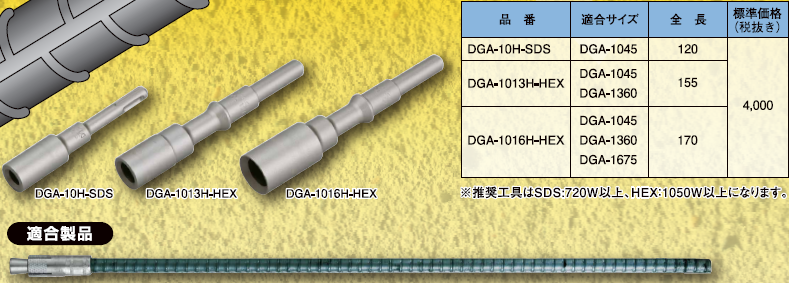

DGA series come with the length of 120, 155, and 170mm, and are priced at 4,000 yens. Users can perform high-volume work with an electric driver. DGA series are applicable to D anchors. The specifications of applicable D anchors are listed below:D10: Total length 400mm. Outside diameter 14mm. Length of the Anchor part 40mm. Drilling diameter 14.5mm. Drilling depth 45mm.D13: Total length 550mm. Outside diameter 17.3mm. Length of the Anchor part 50mm. Drilling diameter 18mm. Drilling depth 56mm.D16: Total length 690mm. Outside diameter 21.5mm. Length of the Anchor part 60mm. Drilling diameter 22mm. Drilling depth 68mm.

GT-2530 anchors are applicable to installation on concrete walls and even run-through holes. Specification: Outside diameter 10mm. Total length 30mm. Thread length 12mm. Drilling diameter 10.5mm. Embedding length 30mm. Drilling depth 30mm. Standard unit price 56 yens (pre-tax).
